AKG C480 B-ULS Reference Modular Pre-Amp

$799.00

Be the first to review this product

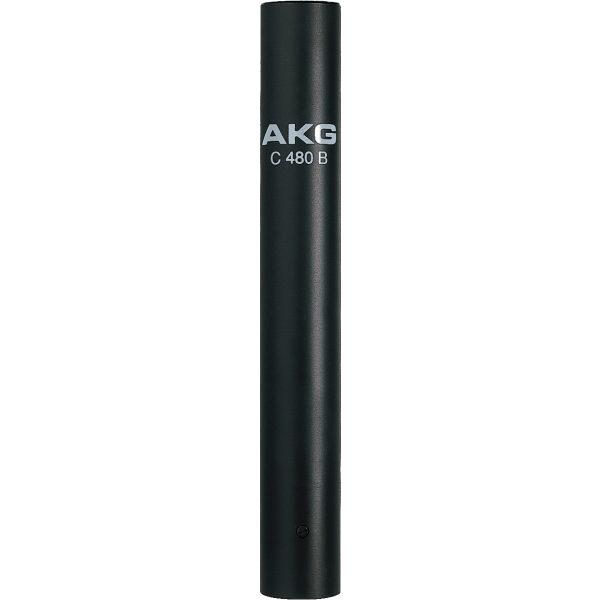

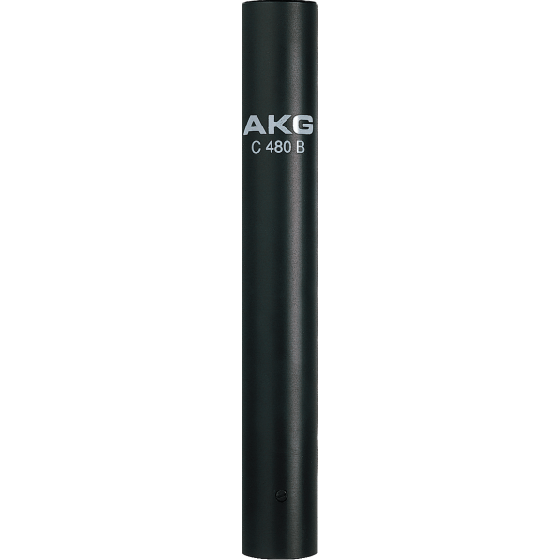

AKG C480 B-ULS Reference Modular Pre-Amp
SKU: 2180Z00150
Availability: Out of stock
  • Details
  • Additional Info
  • Tags
  • Reviews

Just pure sound

designed for the most demanding studio and broadcast applications
The C480 B is the pre-amp for the ultralinear series capsules,CK61,CK62,CK63,and CK69 ULS,and represents one of the quietest microphone amps ever built. The C480 B offers excellent audio quality and maximum flexibility. Its electronic circuitry coupled with a transformerless output stage assures completely linear transfer characteristics across the entire frequency range,while achieving self-noise figures close to the theoretical minimum.

A specially designed output stage drives difficult loads like excessively long cables without harming the signal quality. The C480 B offers a two-step high-pass filter and two gain stages of either -10dB or +6dB.

Sophisticated microphone pre-amp design
for ultralow noise performance

Transformerless output
provides extremely low distortion,highest reliability and less weight

Switchable attenuation pad
enables high SPL applications up to 144dB

Switchable bass-cut filter
eliminates rumble or footfall noise

Specially designed output stage for difficult loads
drives excessively long cables with no signal degradation


Technical Specification

General
Audio Frequency bandwidth 20 to 20000 Hz
Preattenuation Pad 6
-10 dB
Bass Cut Filter 100 Hz
Recommended Load Impedance 2000 Ohms
Polar Patterns
Cardioid
Powering Interface
Voltage 48 V
Current 2 mA
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Design
Finish matte black
Dimensions / Weight
Height 173 mm
Diameter 21 mm
Condition New
Country of Manufacture N/A
