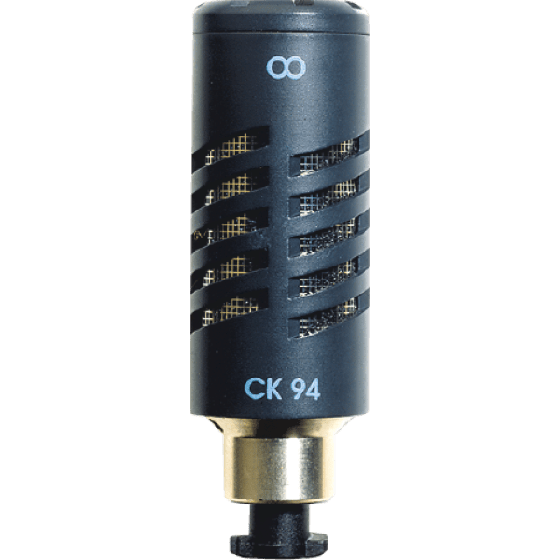

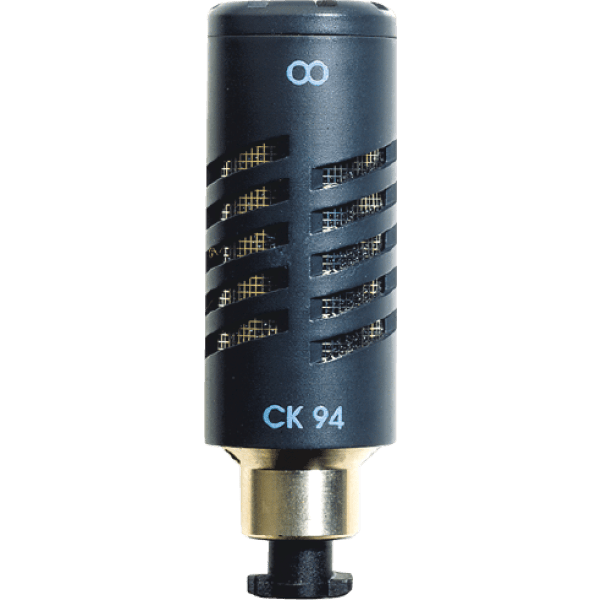

AKG CK94 High Performance Figure-Eight Condenser Microphone Capsule


Be the first to review this product

AKG CK94 High Performance Figure-Eight Condenser Microphone Capsule
SKU: 2439Z00060
Availability: In stock
  • Details
  • Additional Info
  • Tags
  • Reviews

Do the twist

wherever speed,ruggedness and high sound quality are mandatory
The CK94 high-performance small condenser capsule is characterized by a smooth and well-balanced frequency response. Its figure-eight polar pattern picks up sound arriving from opposite directions and efficiently suppresses off-axis sounds. Thus it is the perfect tool for applications where sound sources face each other,as in broadcast-interview and roundtable situations. It is also perfect as a side microphone in M/S stereo technique.

The CK94 is part of the Blue Line Series and works exclusively with the SE300 B pre-amp module. Its robust Modulock™ bayonet coupling allows quick and easy changing of the capsules.

Figure-eight polar pattern with accurate axial response
for advanced stereo miking techniques

Robust Modulock™ bayonet design
allows quick and easy changing of the capsules

Carefully handcrafted in Vienna,Austria
meticulous attention to detail ensures highest quality


Technical Specification

Audio Frequency bandwidth 20 to 20000 Hz
Sensitivity 10 mV/Pa
Equivalent Noise Level 22 dB-A
Signal to Noise 72 dB-A
Electrical Impedance 200 Ohms
Recommended Load Impedance 1000 Ohms
Polar Patterns
Figure of eight
Powering Interface
Voltage 9 to 52 V
Current 2 mA
Audio Output
Type bayonet mount
Finish dark gray
Dimensions / Weight
Height 59 mm
Diameter 19 mm
Condition New
Country of Manufacture
