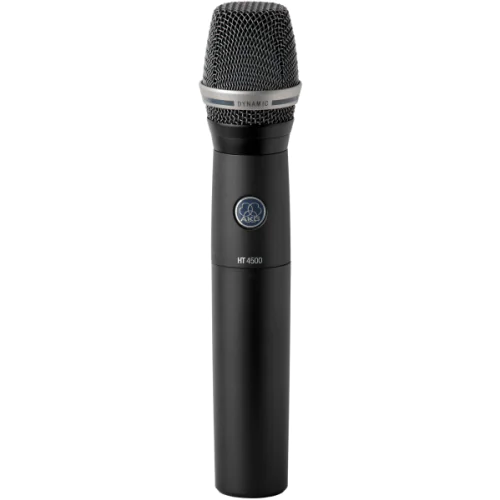

Stress Free for large theater,installed sound and tour sound applications The HT4500 is an analog reference wireless handheld transmitter that connects to a choice of four different microphones to cover a wide range of applications. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand. The pilot tone continuously sends transmitter data,including mute switch position and remaining battery life to the receiver.

The HT4500 offers an extended battery lifetime of 15 hours with two standard AA alkaline batteries. With integrated charging contacts,the optional BP4000 battery pack can be charged inside the transmitter. The readout of its exact battery life in hours is a valuable advantage in wireless applications.

Interchangeable microphone heads
a variety of premium dynamic and condenser vocal microphones available

Leading-edge dipole-antenna technology
optimum performance even when the antenna is covered

Up to 50mW transmission power
maximum radio signal strength for long-distance applications

15 hours of battery life
with two standard AA alkaline batteries

Remaining battery lifetime in hours
real-time display of the remaining operating time

Technical Specification

Audio	Audio Frequency bandwidth 35 to 20000 Hz Signal to Noise 120 dB-A THD at 1 kHz 0.3 Prozent
Enhanced	Operating temperature range -10 to 55 Celsius Peak deviation 48 kHz
Radio	Switching bandwidth 30 MHz Recommended simultaneous channels 50 Number of selectable frequencies 1220 (selectable in 25kHz steps) Frequency Selection Selectable frequency in 25kHz steps Wireless channels within device - Radio Range (Line of Sight) 100m (depending on antenna system) Switchable RF Power no Modulation FM Encryption No encryption Diversity True Diversity Pilot Tone yes
Transmitter	Nominal deviation 20 kHz kHz Radio Output Power (min/max) 10 to 50 mW Microphone head versions C535 WL1 Interchangeable Microphone Head yes Transmitter Synchronization Manual
Battery 1	Batterietype LR6 AA alkaline battery Number of Batteries 2 Operating Time 15 h
Battery 2	Batterietype HR 6 AA (NiHM) rechargeable battery Compatibel Charging System CU4000 Number of Batteries 2 Operating Time 12 h
Battery 3	Batterietype AKG BP 4000 Compatibel Charging System CU4000 Number of Batteries 1 Operating Time 12 h
Design	Body Metall Finish black
Dimensions / Weight	Height 247 mm Width 51 mm Net Weight 125 g
