AKG PT45 BD A High-Performance Wireless Body-Pack Transmitter


Be the first to review this product

AKG PT45 BD A High-Performance Wireless Body-Pack Transmitter
SKU: 3247H00010
Availability: In stock
  • Details
  • Additional Info
  • Tags
  • Reviews

No more cables

for houses of worship,hotels,clubs and band applications

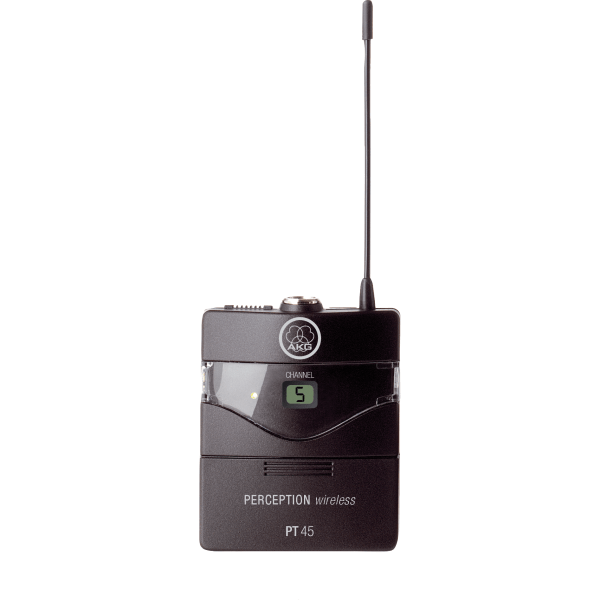

The PT45 is an analog high-performance wireless body-pack transmitter in a small,rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars,basses,instrumental pickups and headsets. It is designed for stress-free work on small stages,in houses of worship and in conference rooms.

The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead,allowing the user full control of performance time. The package includes a rugged guitar cable.

Eight hours of operation from a single AA-size battery
saves money in day-to-day use

Professional three-pin mini XLR connector
compatible with guitar cables,headset and instrument mics

Gain control on transmitter
for immediate volume adjustment

Noiseless on/off/mute switch
for easy operation

Compact and rugged body-pack design
for maximum wearing comfort

Technical Specification

Audio Frequency bandwidth 40 to 20000 Hz
Signal to Noise 105 dB-A
THD at 1 kHz 0.8 Prozent
Operating temperature range -10 to 55 Celsius
Peak deviation 45 kHz
Pocket Transmitter
Nominal deviation 15 kHz kHz
Radio Output Power (min/max) 0 ... 0 mW
Transmitter Synchronization Manual
Audio Input
Type Mini XLR
Gender Female
Contacts 3-pin
Maximum audio level 12 dB
Rated Impedance 1 Ohms
Battery 1
Batterietype LR6 AA alkaline battery
Number of Batteries 1
Operating Time 8 h
Battery 2
Number of Batteries 1
Operating Time 8 h
Battery 3
Number of Batteries 1
Operating Time 14 h
Body Plastic
Finish black
Dimensions / Weight
Length 60 mm
Height 75.5 mm
Width 30 mm
Switching bandwidth 30 MHz
Recommended simultaneous channels 5
Number of selectable frequencies 8 Fixed frequencies
Frequency Selection Fixed frequency
Wireless channels within device -
Radio Range (Line of Sight) 30m
Switchable RF Power no
Modulation FM
Encryption No encryption
Pilot Tone no
Condition New
Country of Manufacture N/A
