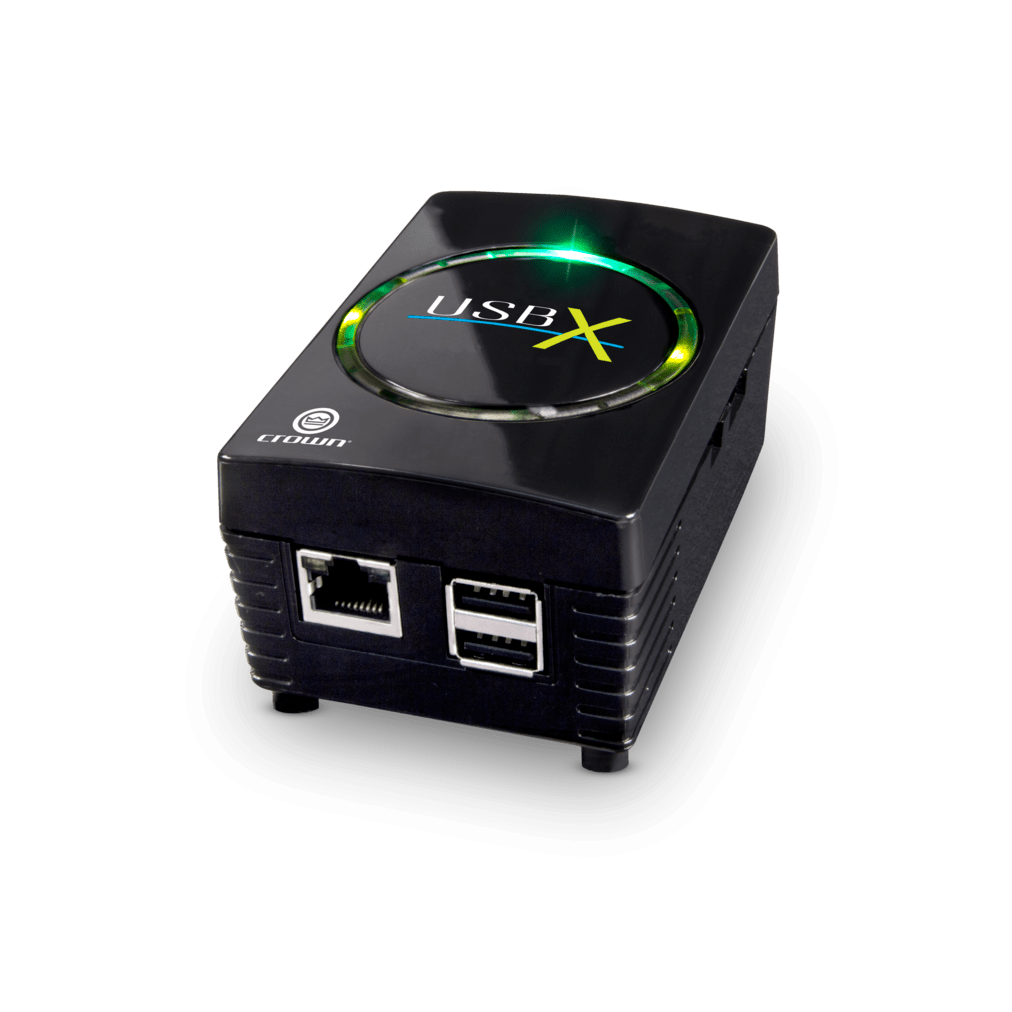

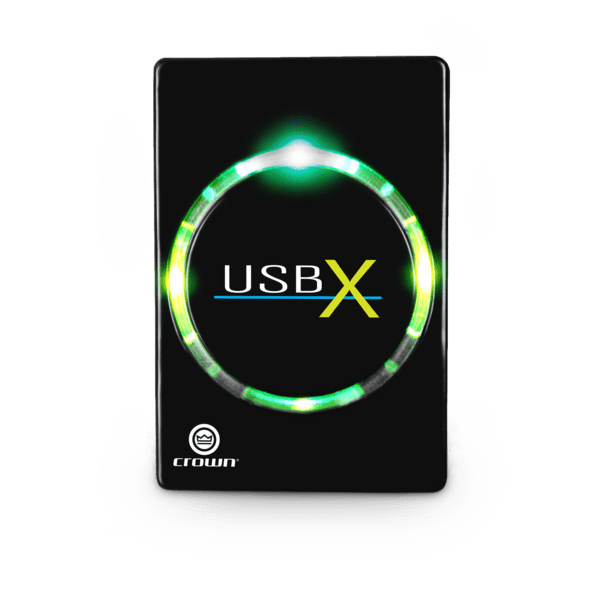

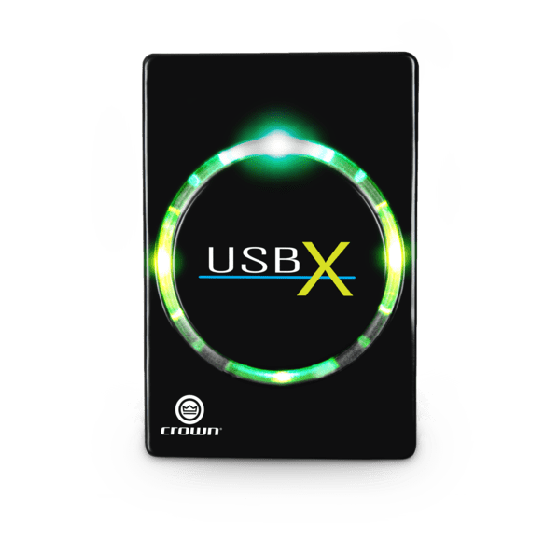

Crown USBX Wi-Fi/USB Control Interface
$199.00
Out of stock
SKU
109677
Crown USBX Wi-Fi/USB Control Interface
Crown USBX Wi-Fi/USB Control Interface
Overview
Features
Specifications
Overview
A built-in Wi-Fi access point allows USBX to become a powerful and convenient tool for managing Crown XTi,CDi,DSi devices via the Powered by Crown iOS application. The primary intended use of USBX is as an interface to Crown USB-enabled amplifiers which connect either directly,or via a downstream USB hub,to a USB port on USBX. Then the amplifiers can be accessed via the RJ45 gigabit Ethernet port on USBX,or wirelessly via the wireless access point which is built into USBX.
Features
- Completely self-contained unit easily integrates into existing systems that include Crown XTi,CDi,and DSi amplifiers
- Perfect for mobile PA systems,movie theaters,small to medium fixed installations and more
- For quick access to adjusting levels and monitoring I/O meters,use an iDevice with the Powered by Crown app to instantly communicate with attached amplifiers over Wi-Fi with USBX
- For power users,use the built-in wireless access point or the 1Gbps wired Ethernet connection on USBX to control USB-connected amplifiers via a computer running System Architect
Specifications
| Connectors | 1 GB/s wired Ethernet via RJ45 connector,802.11 b/g/n wireless Ethernet via built-in WAP |
| Input | 100-240VAC/50-60HZ Max 20W |
| Power Consumption | 5VDC/3.0A Max |
| Controls | Supports fully featured monitoring and control of up to 8 USB-enabled Crown amplifiers. This includes XTi2,DCi,and DSi. |
| Condition | New |
|---|---|
| Country of Manufacture | China |
