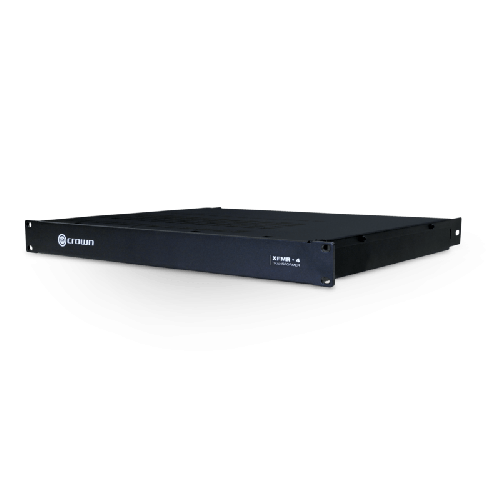

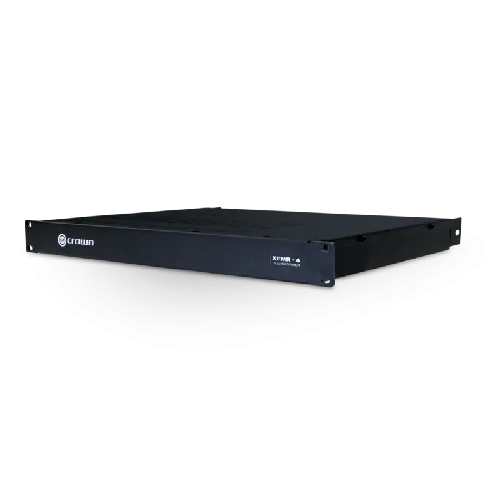

Crown XFMR-4 Four Channel Transformer sku number NXFMR4CH

Crown XFMR-4 Four Channel Transformer

Crown XFMR-4 Four Channel Transformer
$522.83
In stock
SKU NXFMR4CH
Crown XFMR-4 Four Channel Transformer
Overview

The Crown XFMR-4 and XFMR-8 are rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.


Features
  • Transformers provide four and eight channels of impedance matching for constant voltage operation
  • Provides 70Vrms and 100Vrms output when used only with the ComTech DriveCore™ Series of amplifiers
  • Allows amplifiers without direct constant voltage capability to be easily integrated into distributed systems
  • “Jumper” cables are provided to easily incorporate the XFMR unit with a ComTech DriveCore amplifier

Specifications
Output Connectors Pluggable barrier block connectors that accept up to 14 AWG wire
Frequency Response +/-1.0dB (at 70Hz to 15 kHz)
Insertion Loss ≤1.0 dB max (at 70VAC)
Max Input 32Vrms/125W
Dimensions 19" x 1.72" x 15.6" (48.3cm x 4.4cm x 39.7cm)
Weight 17lbs (7.7kg)
More Information
ConditionNew
Country of ManufactureChina
★★★★★
★★★★★
