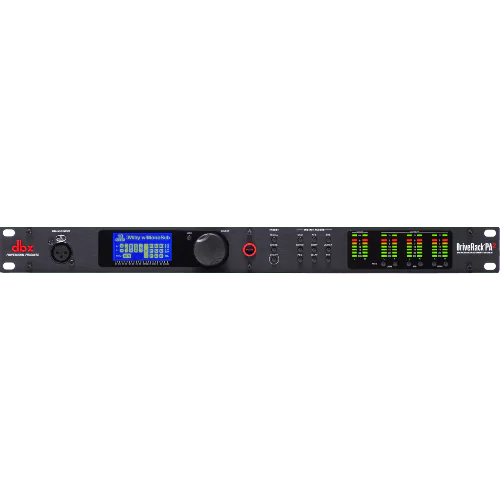

dbx DriveRack PA2 Complete Loudspeaker Management System
Overview

The DriveRack® PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms,a new input delay module for delaying the FOH system to the backline,Ethernet control via an Android®,iOS®,Mac®,or Windows® device,and updated Wizards,the DriveRack PA2 continues the DriveRack legacy of great-sounding,powerful,and affordable loudspeaker management processors,for a whole new generation.

New,improved AutoEQ algorithm ensures an extremely accurate,fast,and non-intrusive automatic EQ experience.

With the RTA Mic “listening” to your room,the new,updated DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made very quickly,without subjecting the audience to annoying,lengthy broadcasts of pink noise.

Enhanced AFS™ algorithm for faster,more precise feedback elimination,without adversely affecting your system’s tone.

Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately,dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before it even has a chance,while never altering your sound.

Updated Wizards make initial set up easy,while ensuring speaker tunings and other settings are up-to-date.

Wizard functions on the DriveRack PA2 guide you through easy,step-by-step processes to help you get the most from your loudspeaker system. Helps you easily configure level balancing,AutoEQ,Advanced Feedback Suppression,and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers.

AVAILABLE INPUT PROCESSING

• dbx Compression
• AFS™ (Advanced Feedback Suppression)
• Graphic EQ
• 8-Band Parametric EQ (adjusted when using the AutoEQ)
• Subharmonic Synthesis

AVAILABLE OUTPUT PROCESSING

• Crossover (supports full range,2-way,and 3-way systems)
• 8-Band Parametric EQs (used for speaker tunings)
• dbx Limiting
• Driver Alignment Delays

Features

• All New Setup Wizard
• Streamlined AutoEQ™
• All New AFS™ (Advanced Feedback Suppression)
• Mobile Control (Android®,iOS®,Mac®,Windows®)
• dbx Compression
• Graphic EQ
• 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
• Subharmonic Synthesis
• Crossover (supports full range,2-way,and 3-way systems)
• 8-Band Parametric EQs (used for speaker tunings) Output
• dbx Limiting
• Driver Alignment Delays

Specifications

Input	(2) line inputs. (1) RTA Mic input
Input Connectors	(2) Female XLR line inputs. (1) Female XLR RTA Mic input
Input Type	Electronically balanced/RF filtered
Input Impedance	>50 kohm
A/D Converter	dbx Type IV™ Conversion System
CMRR	> 45dB
Mic Preamp Phantom Power	+15VDC (RTA)
Mic Preamp Equivalent Input Noise (EIN)
Output	(6) Line Outputs
Output Connectors	Male XLR
Output Type	Electronically balanced,RF filtered
Output Impedance	120 Ω
Max Output	+20dBu
A/D Dynamic Range	112 dB A-weighted,110 dB unweighted
Type IV Dynamic Range	123 dB with transient material,A-weighted,22kHz BW; 121 dB with transient material,unweighted,22kHz BW; 115 dB typical with program material,A-weighted,22kHz BW
Input Delay Length	100ms
Alignment Delay	10ms per channel (60ms total)
Sample Rate	48kHz
Dynamic Range	>110 dB A-weighted,>107dB unweighted
THD+Noise	0.003% typical at +4dBu,1kHz,0dB input gain
Frequency Response	20Hz – 20kHz,+/- 0.5dB
Interchannel Crosstalk
Operating Voltage	100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz
Power Consumption	22 W
Unit Weight	5.25 lbs. (2.4 kg)
Shipping Weight	6.75 lbs. (3.1 kg)
Dimensions	1.75” (H) x 5.75” (D) x 19” (W),4.4cm (H) x 14.6cm (D) x 48.26cm (W)
D/A Dynamic Range	112 dB A-weighted,110dB unweighted
