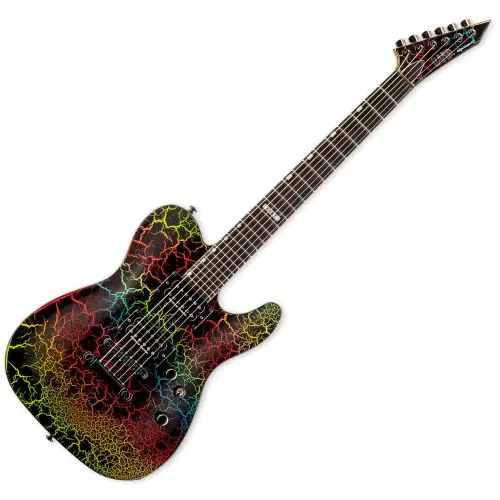

While ESP first got started in 1975 as a small repair shop in Tokyo, it was really toward the mid ‘80s when our guitars and basses grabbed the attention of players around the world. The LTD ’87 Series are faithful recreations of this set of instruments from ESP’s 1987 catalog. Unlike the current single-cutaway Eclipse shape, the original ESP Eclipse was based on the TE archtop shape,  which is the basis of the LTD Eclipse ’87. This guitar offers neck-thru-body construction with a mahogany body and three-piece maple neck. The ’87 Series Eclipse models offer a set of Seymour Duncan ’59 (neck) and JB (bridge) pickup set (with original style bobbins and a push-pull control to split the coils), and a TonePros locking TOM bridge and tailpiece.

Specifications

• CONSTRUCTION Neck-Thru
• SCALE 24.75"
• BODY Mahogany
• NECK 3pc Maple
• FINGERBOARD Macassar Ebony
• FINGERBOARD RADIUS 350mm
• FINISH Rainbow Crackle
• NUT WIDTH 42mm
• NUT TYPE molded
• NECK CONTOUR Thin U
• FRETS/TYPE 24 XJ
• HARDWARE COLOR Black
• STRAP BUTTON Standard
• TUNERS LTD Locking
• BRIDGE TonePros locking TOM bridge and tailpiece
• NECK PU Seymour Duncan '59 (Pull Tone for Split)
• BRIDGE PU Seymour Duncan JB (Pull Tone for Split)
• ELECTRONICS Passive
• ELECTRONICS LAYOUT Volume/Tone(Push/Pull)/Toggle Switch
• STRINGS D'Addario XL120 (.009/.011/.016/.024/.032/.042)
• CASE ST-TE GUITAR FORM FIT CASE
• CASE INCLUDED No
