JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF sku number AC2215/64

JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF

  • PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.
  • Bi-Amp/Passive Switchable.
  • Optional U-Bracket Model MTU-2.
  • For fixed installation applications requiring a compact cabinet, such as small performing arts facilities, theatrical sound design, auditoriums, sports facilities, themed entertainment venues and in delay/fill locations of larger systems.
    • $1,557.75
    In stock
    SKU AC2215/64

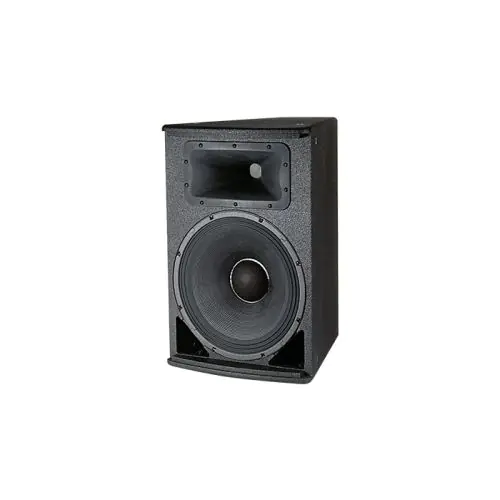

    AC2215 speakers are compact 2-way full-range loudspeaker systems comprised of one 380 mm (15 in) low frequency driver and one voice-coil compression driver.


    SPECIFICATIONS
    Frequency Range &nbsp 42 Hz - 19 kHz (-10 dB)
    Frequency Response &nbsp 50 Hz - 17 kHz ( ± 3 dB)
    Coverage Pattern &nbsp 60°x 40°
    Crossover Modes &nbsp Bi-amp/Passive switchable
    Passive Crossover Slopes &nbsp 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
    Transducer Power Rating (AES) &nbsp LF: 275 W (1100 W peak), 2 hrs / 250 W (1000 W peak), 100 hrs / HF: 30 W (120 W peak), 2 hrs
    Long-Term System Power Rating (IEC) &nbsp Passive mode: 250 W (1000 W peak), 100 hrs
    Maximum SPL &nbsp Bi-amp mode: LF: 121 dB-SPL cont avg (127 dB peak) / HF: 129 dB-SPL cont avg (135 dB peak)
    Maximum SPL &nbsp Passive mode: 121 dB-SPL cont avg (127 dB peak)
    System Sensitivity &nbsp Passive mode: 97 dB SPL (1W @ 1m)
    More Information
    ConditionNew
    Country of ManufactureMexico
    ★★★★★
    ★★★★★
