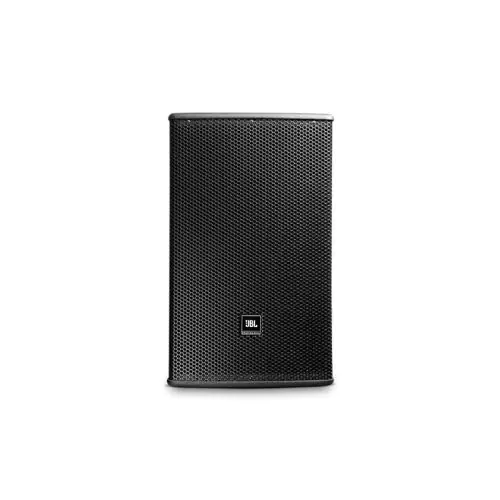

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

SPECIFICATIONS
Frequency Range (-10 dB) &nbsp 60 Hz - 20 kHz
Frequency Response (±3 dB) &nbsp 75 Hz - 18 kHz
System Sensitivity (1w @ 1m) &nbsp 98 dB
Nominal Impedance &nbsp 8 ohms
Maximum SPL (1m) &nbsp 122 dB (128 dB peak)
Power Rating (Continuous/Program/Peak) &nbsp 250 W/500 W/1000 W
Coverage Pattern &nbsp 60° x 60° (H x V)
Crossover &nbsp 1.5 kHz
Low Frequency Driver &nbsp 1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver with 66 mm (2.5 in) voice-coil
High Frequency Driver &nbsp 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector &nbsp Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure &nbsp 15 mm multi-ply hardwood plywood
Grille &nbsp Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish &nbsp Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting &nbsp 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) &nbsp 680 mm x 420 mm x 445 mm (26.7 in x 16.5 in x 17.5 in)
Net Weight &nbsp 19.8 kg (43.6lbs)
