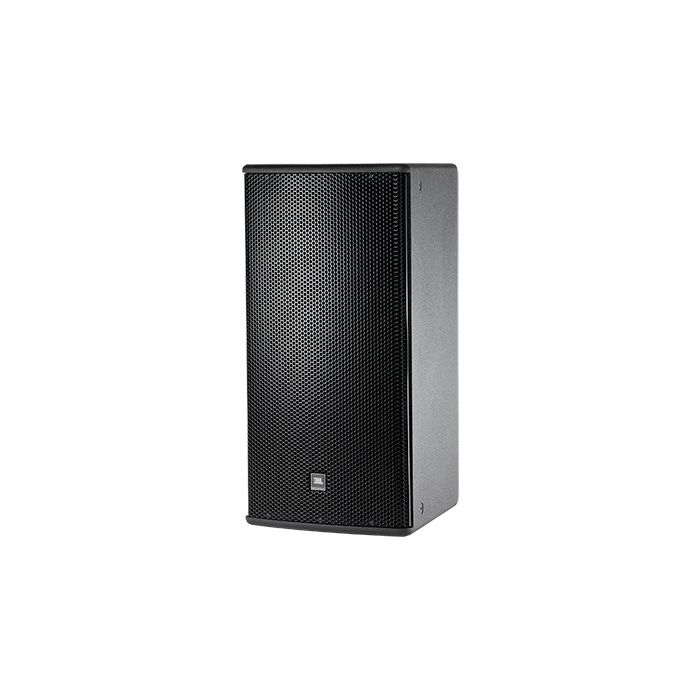

JBL AM5212/00 2-Way Loudspeaker System with 1 x 12 LF

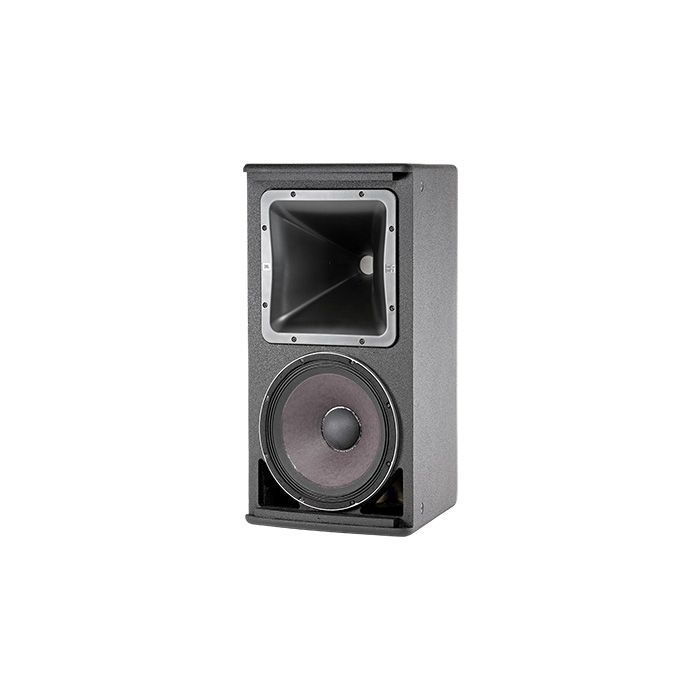

The AM5212/00 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 highfrequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 100° x 100° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Specifications

• Frequency Range (-10 dB) 37 Hz – 20 kHz
• Frequency Response (±3 dB) 43 Hz – 20 kHz
• Coverage Pattern 100° x 100°
• Crossover Modes Bi-amp/Passive switchable
• Passive Crossover Frequency 1.6 kHz
• Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs 300 W (1200 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
• Long-Term System Power Rating (IEC) Passive mode: 300 W (1200 W peak), 100 hrs
• Maximum SPL Bi-amp mode: LF: 122 dB HF: 131 dB
• System Sensitivity (1W @ 1m) Passive mode: 96 dB SPL
• Low Frequency Driver 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
• Nominal Impedance 8 ohms
• Sensitivity (1W @ 1m, within operational band) 97 dB SPL
• High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
• Nominal Impedance 8 ohms
• Sensitivity (1W @ 1m) 97 dB SPL
• Waveguide PT-H1010HF-1
• Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
• Finish Black DuraFlex™ finish. White available upon request.
• Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

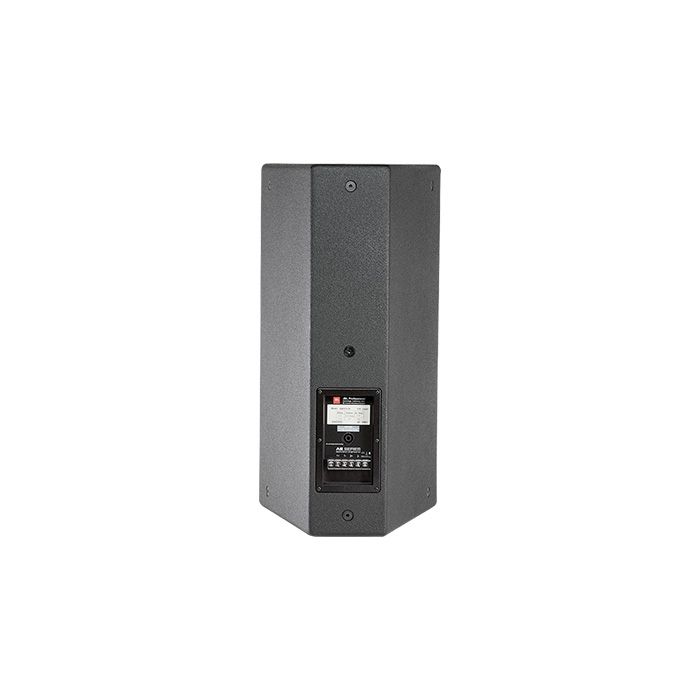

• Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
• Environmental Specifications Mil-Std 810; IP-x3 per IEC529
• Dimensions (H x W x D in vertical cabinet orientation) 711 x 369 x 458 mm (28.06 x 14.5 x 18.0 in)
• Net Weight 20.2 kg (45 lb)
• Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
