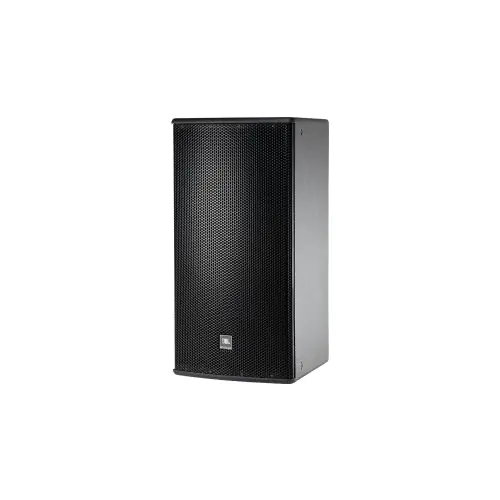

JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF sku number AM5215/66

JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF

60° x 60° Coverage 265H-1 Differential Drive® Low-Frequency Driver 2408H-1 High-Frequency Compression Driver Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion Rotatable waveguide for vertical or horizontal orientation Bi-Amp/Passive Switchable Available in Black, White and WRC/WRX weather resistant finishes
$2,472.30
In stock
SKU AM5215/66

The AM5215/66 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high-frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.


Specifications
  • Frequency Range (-10 dB) 35 Hz - 20 kHz
  • Frequency Response (±3 dB) 41 Hz – 20 kHz
  • Coverage Pattern /64: 60° x 60°, rotatable waveguide
  • Directivity Factor (Q) 14.5
  • Directivity Index (DI): 11.6 dB
  • Crossover Modes Bi-amp/Passive switchable
  • Passive Crossover Frequency 2 kHz
  • Transducer Power Rating (AES) LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
  • Long-Term System Power Rating (IEC) Passive mode: 350 W (1400 W peak), 100 hrs
  • Maximum SPL Bi-amp mode: LF: 125 dB-SPL cont avg HF: 131 dB-SPL cont avg.
  • System Sensitivity (1W @ 1m) Passive mode: 98 dB SPL
  • Low Frequency Driver 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
  • Nominal Impedance 8 ohms
  • Sensitivity (1W @ 1m, within operational band) 99 dB SPL
  • High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
  • Nominal Impedance 8 ohms
  • Sensitivity (1W @ 1m) 114 dB SPL
  • Waveguide PT-H66HF-1
  • Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
  • Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
  • Finish Black DuraFlex™ finish. White available upon request.
  • Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
  • Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max
    • width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
  • Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
  • Dimensions (H x W x D in vertical cabinet orientation) 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
  • Net Weight 25.0 kg (55 lb)
  • Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
    • More Information
    ConditionNew
    Country of ManufactureMexico
    ★★★★★
    ★★★★★
