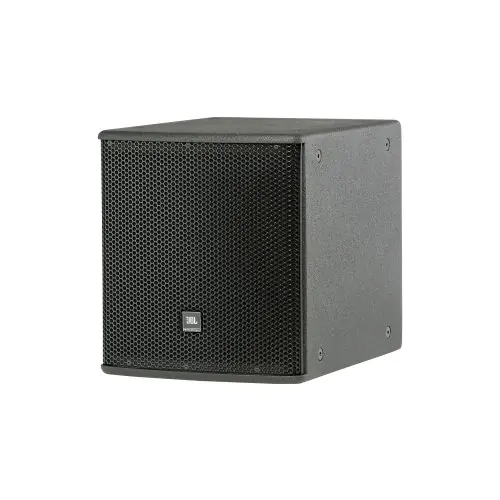

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Specifications

Frequency Range (-10 dB) 35 Hz – 1 kHz

Frequency Response (± 3 dB) 43 Hz – 1 kHz

Transducer Power Rating 1000 W (4000 W peak), 2 hrs.

Long-Term System Power Rating 700 W (2800 W peak), 100 hrs.

Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)

System Sensitivity 40 Hz - 300 Hz: 96 dB-SPL,

1W (2.83V) @ 1m

Nominal Impedance 8 ohms

Low Frequency Driver 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver

Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood

Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware

Finish Black DuraFlex™ finish. White available upon request.

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max

width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in vertical cabinet orientation) 406 x 369 x 483 mm (16.0 x 14.5 x 19.0 in)

Net Weight 16.3 kg (36.0 lb)

Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
