JBL ASB6128 High Power 2 x 18 2242H SVG Driver sku number ASB6128

JBL ASB6128 High Power 2 x 18 2242H SVG Driver

Large vent area for high output. Parallel/Discrete Switchable. For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
$4,582.80
In stock
SKU ASB6128

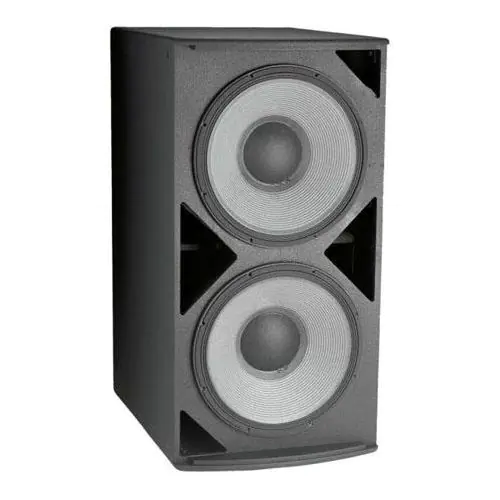

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.
Specifications

  • Frequency Range 28 Hz – 1 kHz (-10 dB)
  • Frequency Response 35 Hz – 1 kHz ( ± 3 dB)
  • Input Modes Drivers Parallel / Drivers Discrete
  • Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
  • Long-Term System Power Rating (IEC) 1600 W (6400 W peak), 100 hrs
  • Maximum SPL 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)
    • 100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
  • System Sensitivity (dB-SPL, 1W @ 1m) 30 Hz – 100 Hz: 102 dB
    • 100 Hz – 500 Hz: 102 dB
  • Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
    • More Information
    ConditionNew
    Country of ManufactureMexico
    ★★★★★
    ★★★★★
