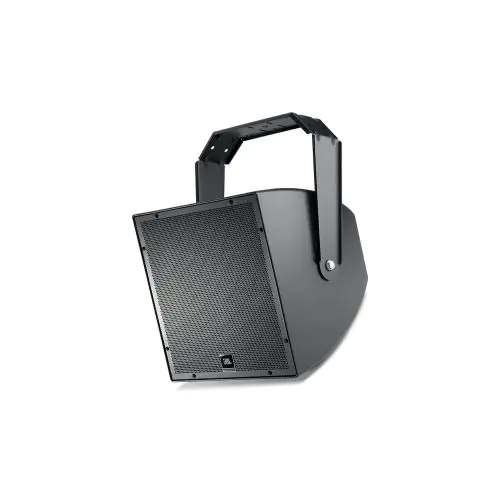

JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker with 15 LF Black sku number AWC159-BK

JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker with 15 LF Bl

Highly weather-resistant IP56 rating Consistent 90° x 90° broadband pattern control Components: • 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil. • 38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. 52 Hz – 20 kHz frequency response. 300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
$1,439.00
In stock
SKU AWC159-BK
The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

SPECIFICATIONS
  • Frequency Range (-10 dB) 52 Hz – 20 kHz

  • Frequency Response (±3 dB) 80 Hz – 20 kHz

  • Coverage Pattern 90° x 90°

  • Directivity Factor 11.1 (1 kHz – 16 kHz)

  • Directivity Index (DI) 9.7 dB (1 kHz – 16 kHz)

  • Long-Term System Power Rating (IEC) 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs

  • Sensitivity (2.83V @ 1m) 98 dB (Ave. 80 Hz – 20 kHz)

  • Maximum SPL Direct 8Ω: 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB)

  • Crossover Network 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

  • Nominal Impedance 8 ohms

  • Transformer Taps 70V: 300W, 150W, 75W, 38W

    • 100V: 300W, 150W, 75W
  • Low Frequency Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.

  • High Frequency Driver 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled.

  • Enclosure ABS with Glass enclosure, heavily braced

  • Attachment Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

  • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

  • Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

  • Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

  • Dimensions 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back

  • Colors Available in gray (similar to Pantone 420C) and black (-BK)

  • Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.

    • More Information
    ConditionNew
    Country of ManufactureChina
    ★★★★★
    ★★★★★
