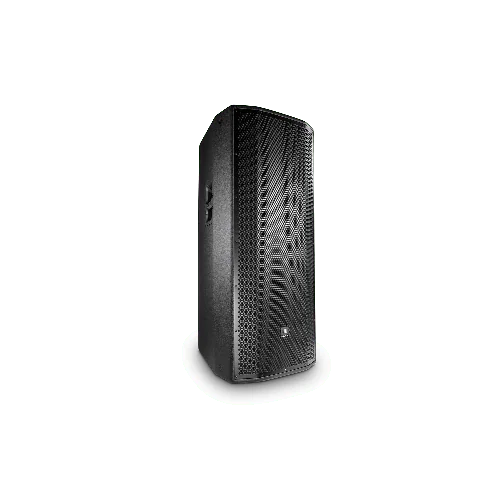

JBL PRX825W Dual 15” Two-Way Full-Range Main System with Wi-Fi sku number PRX825W

JBL PRX825W Dual 15” Two-Way Full-Range Main System with Wi-Fi

JBL PRX825W Dual 15” Two-Way Full-Range Main System with Wi-Fi
$1,659.00
In stock
SKU PRX825W
15” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi
The JBL PRX815W is a full-range speaker designed for main system and floor monitor applications. Featuring a 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX815W delivers incredible volume in a lightweight and compact form factor.


FEATURES
  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

APPLICATIONS
  • The 2-way 15” offers the perfect balance between size and performance. The PRX815W truly is an exception; it’s small, light weight, versatile and powerful with remote Wi-Fi control of onboard DSP EQ parameters. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ’s when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX800 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX815W delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX800 sub-woofer the system becomes an efficient, full-range sound system.
  • The PRX815W is comprised of 15” 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.


SPECIFICATIONS

  System Type Self Powered 15”, two-way, bass-reflex
  Maximum SPL Normal: 137 dB
Boost: 137 dB
  Frequency Range (-10 dB) Main: 50-20k
Monitor: 46-20k
  Frequency Response (±3 dB) Main: 56-20k
Monitor: 56-19k
  Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
  Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
  Signal indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
  EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
  Dynamic Control (Input) dbx Type IV™ limiter circuit
  Crossover Frequency 2.0 kHz
  Design Highly efficient Class-D amplifier
  Power Rating 1500W (750W x 2)
  AC Power Input 100V - 240V ~ 50/60 Hz
  LF Driver 1 x JBL 275G (15 in) woofer
  HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
  Coverage Pattern 90° x 50° nominal
  Directivity Index (DI) 10.2 dB
  Directivity Factor (Q) 10.4
  Enclosure Asymmetrical, 18 mm, plywood
  Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
  Transport 1 x injection molded handle with backing cup
  Finish Obsidian DuraFlex™ finish
  Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
  Dimensions (H x W x D) 701 mm x 446 mm x 359 mm
(27.6 in x 17.5 in x 14.1 in)
  Net Weight 21.6 kg (47.5 lb)
  Gross Weight 26.3 kg (58.0 lb)

More Information
ConditionNew
Country of ManufactureMexico
★★★★★
★★★★★
