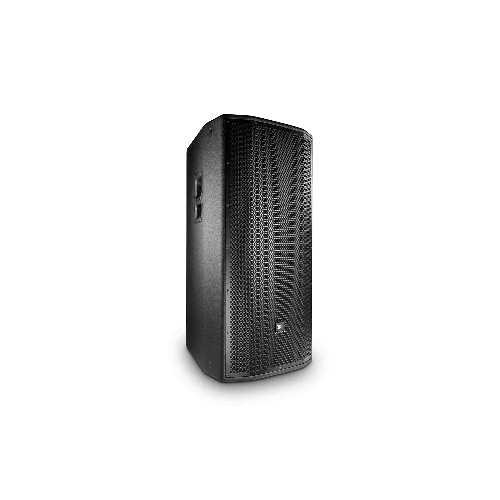

JBL PRX835W 15” Three-Way Full-Range Main System with Wi-Fi sku number PRX835W

JBL PRX835W 15” Three-Way Full-Range Main System with Wi-Fi

JBL PRX835W 15” Three-Way Full-Range Main System with Wi-Fi
$1,609.00
In stock
SKU PRX835W
15” Three-Way Full-Range Main System with Wi-FiThe JBL PRX835W is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835W delivers incredible volume in a lightweight and compact form factor.


FEATURES
  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

APPLICATIONS
  • This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLFW, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.
  • The PRX835W is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth with remote Wi-Fi control of onboard DSP EQ parameters. The PRX835W is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

SPECIFICATIONS
  System Type Self Powered 15”, three-way, bass-reflex
  Maximum SPL Output 138 dB peak
  Frequency Range (-10 dB): Normal: 41 Hz – 20 kHz
Boost: 41 Hz – 20 kHz
  Frequency Response (±3 dB) Normal: 50 Hz – 18.25k
Boost: 48 Hz - 20k
  Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
  Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
  Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power: Blue indicates system has power and ready to pass audio.
  EQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
  Dynamic Control (Input) dbx Type IV™ limiter circuit
  Crossover Frequency 580 Hz, 2.1 kHz
  Design Highly efficient Class-D amplifier
  Power Rating 1500W (750W x 2)
  AC Power Input 100V - 240V ~ 50/60 Hz
  LF Driver 1 x JBL 275G 380 mm (15 in) woofer
  MF Driver 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
  HF Driver 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver
  Coverage Pattern 90° x 50° nominal
  Directivity Index (DI) 10.5 dB
  Directivity Factor (Q) 11.2
  Enclosure Trapezoidal, 18 mm, plywood
  Suspension / Mounting 12 x M10 Suspension Points
  Transport 2 x integrated handles with injection molded backing cup
  Finish Obsidian DuraFlex™ finish
  Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
  Dimensions (H x W x D) 938 mm x 446 mm x 539 mm
(36.9 in x 17.5 in x 21.2 in)
  Net Weight 34.9 kg (77.0 lb)
  Gross Weight 38.6 kg (85.0 lb)

More Information
ConditionNew
Country of ManufactureMexico
★★★★★
★★★★★
