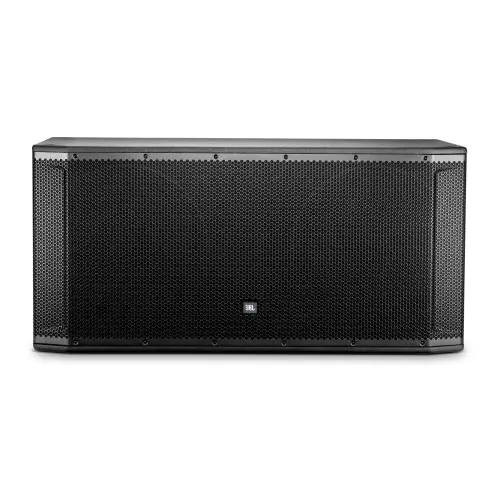

JBL SRX828S 18" Dual Passive Subwoofer System

SRX828S is a dual 18” subwoofer for concert, touring, or installed use. Featuring a wide stance for splaying top boxes, indexing feet for stacking in both the standard and cardioid position, and a 141dB max SPL, the SRX828S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

FEATURES:

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 4800W Peak, 2400W Program, 1200W Continuous
  • Frequency Range: 30Hz-150Hz
  • Frequency Response: 47Hz-150Hz
  • Max SPL: 141dB
  • Amplification options: Passive
  • 2x 2279 LF 8 Ohm 18” Woofer
TECHNOLOGY
PURPOSEFUL DESIGN
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.


APPLICATIONS:
  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.
SPECIFICATIONS

  System Type Passive dual 18”, subwoofer system
  Maximum SPL Output 141dB
  Frequency Range (-10dB) 30hz - 150hz
  Frequency Response (- 3dB) 47hz - 150hz
  Sensitivity (1W/1m) 96dB
  System Power Rating 4800W Peak, 2400W Program, 1200W Continuous
  Nominal Impedance 4 Ohm
  Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
  Operational Modes Passive
  LF Driver (2x) 2279H
  Crossover Frequency 80hz
  Enclosure Material 18mm plywood
  Casters Accepts JBL WK-4S Kit
  Handles 8
  Finish Obsidian Duraflex™ finish
  Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
  Dimensions (L x W x H) 26.79" x 47.42" x 22.57" (681mm x 1205mm x 574mm)
  Weight 137.0 lbs (62.1g)
  Shipping Weight 147.0 (66.5kg)
More Information
ConditionNew
Country of ManufactureMexico
★★★★★
★★★★★
