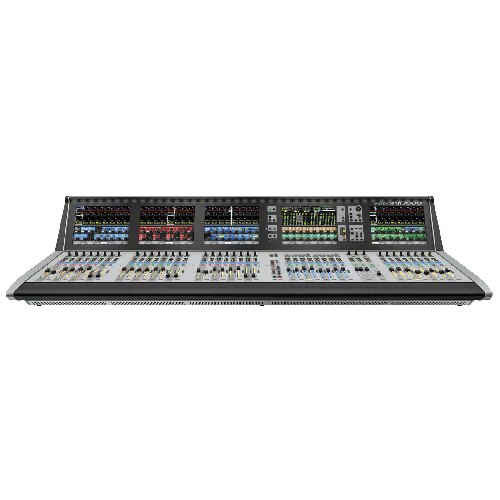

Soundcraft 5057291HU Vi7000 Control Surface
Soundcraft 5057291HU Vi7000 Control Surface
The Vi7000 digital mixing consoles delivers the best Vi sound ever, bringing optional 96kHz processing, upgraded channel counts and even more reliable hardware to live sound's most popular mix interface.
Partnering a compact control surface with new Local Rack and Active Breakout box hardware, Vi delivers simultaneous mixing of up to 128 inputs and 32 mono/stereo busses.
Pristine sound quality is assured by ultra-low noise mic amp designs and enhanced 96kHz* 40-bit floating point digital audio processing, while FX come courtesy of 8 independent Lexicon multi-FX units, BSS DPR901ii™ integration and a BSS graphic EQ on every bus output. Rapid configuration and powerful automation features, radio mic status monitoring and extensive ViSi Connect I/O expansion (EtherSound™, CobraNet™, Dante™, MADI, etc.) complete the package.
* Additional DSP cards and reduced channel count required for 96kHz operation
KEY NEW FEATURES:
- The latest Vistonics™ & FaderGlow™ interface
- Up to 128 inputs and 32 mono/stereo busses
- Enhanced audio processing with 96kHz sample rate option
- Powerful new features including BSS DPR901ii™ Dynamic EQ
- New Local Rack hardware for 384 I/O channels
- 128 channel record interface via MADI or Dante™
- Mix live with UA™ plug-ins (via Realtime Rack)
- Huge connectivity options - Dante™, Rocknet™, Ethersound™, Cobranet™, MADI and more
Specifications
| Frequency Response - Stagebox Mic input to Line output | +0/-1dB, 20Hz-20kHz |
| AES/EBU In to AES/EBU Out | +0/-0.2dB, 20Hz-20kHz |
| Stagebox Mic In (min gain) to Local Line Out | |
| Stagebox Mic In (max gain) to Local Line Out | |
| Local Line In to Line Out | |
| Mic Input E.I.N | |
| Residual Noise | -91dBu Stagebox line output; no inputs routed, Mix fader @0dB |
| CMRR, Stagebox Mic input | 80dB @ 1kHz |
| Sampling Frequency | 48kHz or 96kHz |
| Latency: Stagebox Mic Input to Local Line output | |
| AES/EBU Input Sample Rate | 32-108kHz (with SRC enabled) |
| DSP Resolution | 40-bit floating point |
| Internal Clock Accuracy | |
| Internal Clock Jitter | |
| External Sync | BNC Wordclock |
| Input & Output Levels - Mic Inputs | +28dBu max |
| Input & Output Levels - Line Inputs | +22dBu max |
| Input & Output Levels - Line Outputs | +22dBu max |
| Input & Output Levels - Nominal Operating Level | +4dBu (-18dBFS) |
| Input & Output Impedances - Mic Inputs | 10kohm |
| Input & Output Impedances - All other analogue Inputs | >10kohm |
| Input & Output Impedances - Line Outputs | |
| Input & Output Impedances - AES/EBU Outputs | 110ohm |
| Oscillator | 20Hz to 20kHz/Pink/White Noise, variable level |
| Stagebox HP Filter | 80Hz fixed, 12dB per octave |
| Channel HP filter | 20Hz-600Hz, 18dB per octave |
| Channel LP filter | 1kHz-20kHz, 18dB per octave |
| EQ (Inputs and Bus Outputs) - HF | 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving |
| EQ (Inputs and Bus Outputs) - Hi-Mid | 20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
| EQ (Inputs and Bus Outputs) - Lo-Mid | 20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
| EQ (Inputs and Bus Outputs) - LF | 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving |
| Metering | Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s. |
| Mains Voltage Operating Range | 90-264V, 47-63Hz, autoranging |
| Mains Power Consumption | 300W |
| Operating Temperature | 0°C - 45°C (32°F - 113°F) |
| Relative Humidity | 0% - 90%, non-condensing Ta=40°C (104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Condition | New |
|---|
